IS-IS Watcher

IS-IS Watcher is the IS-IS counterpart of the OSPF Watcher. It passively listens to the IS-IS control plane — over a GRE adjacency or BGP-LS — and logs or exports every change to ELK, Zabbix, WebHooks, and the Topolograph monitoring dashboard. Like the OSPF Watcher, it ships as containers.

vadims06/isiswatcher

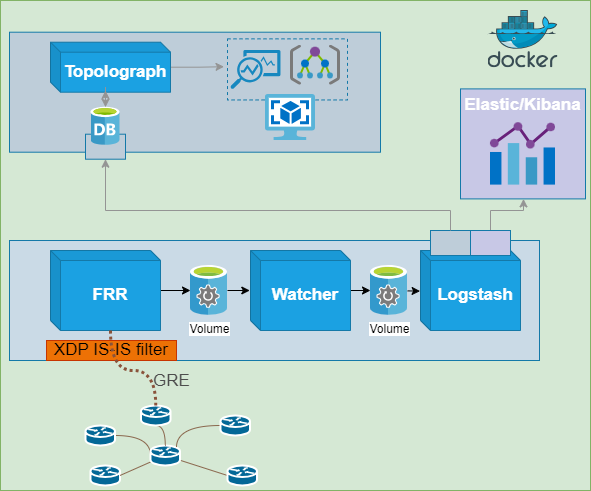

IS-IS Watcher + Topolograph architecture

Detected events

  • IS-IS neighbor adjacency Up/Down
  • IS-IS link cost changes
  • IS-IS networks appearing/disappearing
  • IS-IS TE attributes: administrative group, maximum link bandwidth, maximum reservable bandwidth, unreserved bandwidth, and TE default metric

Everything is grouped by IS-IS level (L1/L2) on the timeline:

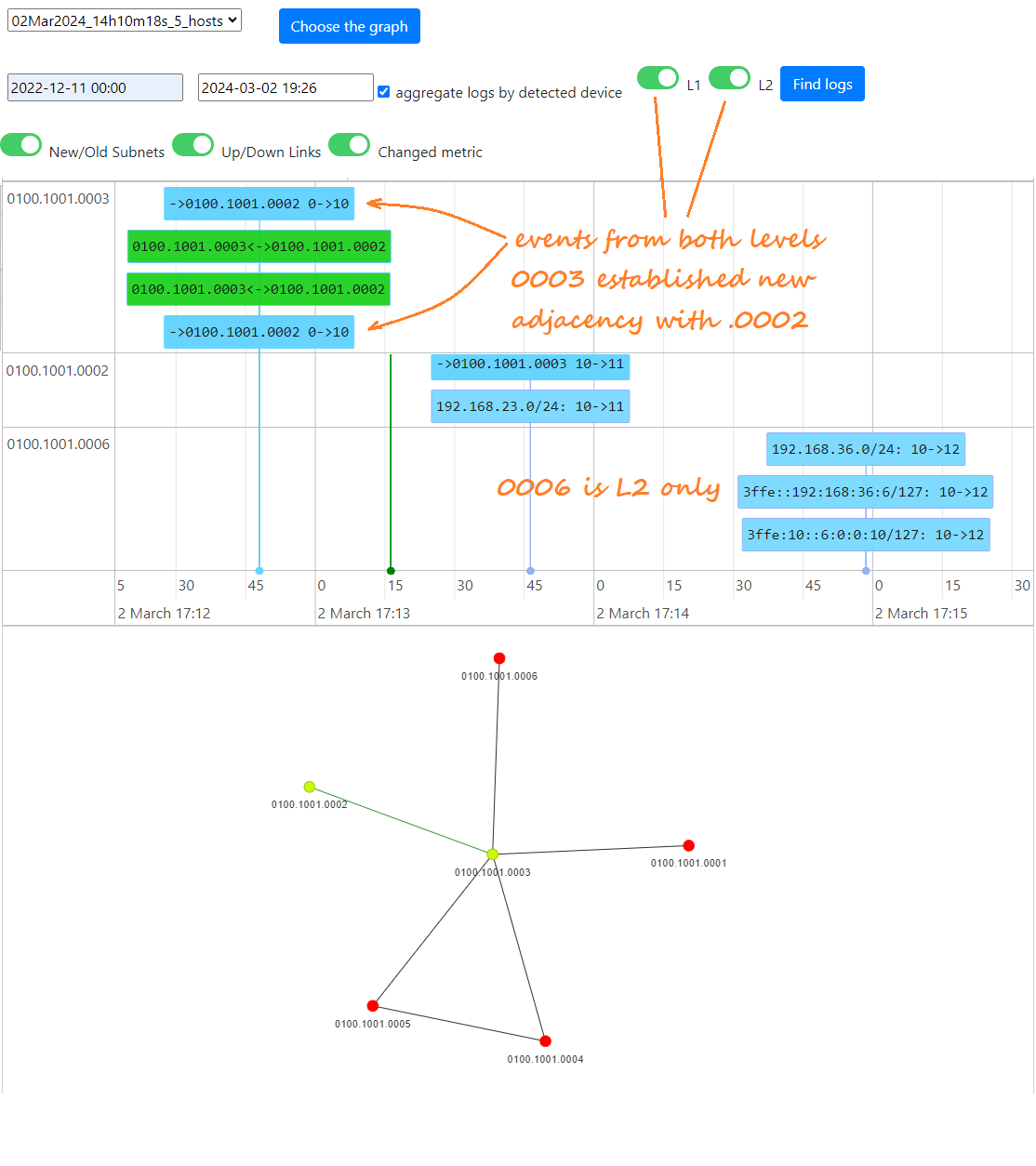

Topolograph dashboard with L1/L2 IS-IS events

What the levels look like

A typical capture might show: a metric change on a link appearing as duplicated logs for both L1 and L2; a router going down for L2 only after isis circuit-type level-1 is applied; a later metric change seen only in L1; and a new stub network appearing in L2.

Connecting it

Connection setup lives under Getting Topology In:

  • GRE mode — FRR forms an IS-IS adjacency over a GRE tunnel; an XDP IS-IS filter keeps the Watcher listen-only by dropping any LSP that advertises more than the Watcher's own network.
  • BGP-LS mode — the router exports IS-IS topology over BGP-LS; GoBGP + the forwarder feed the Watcher.

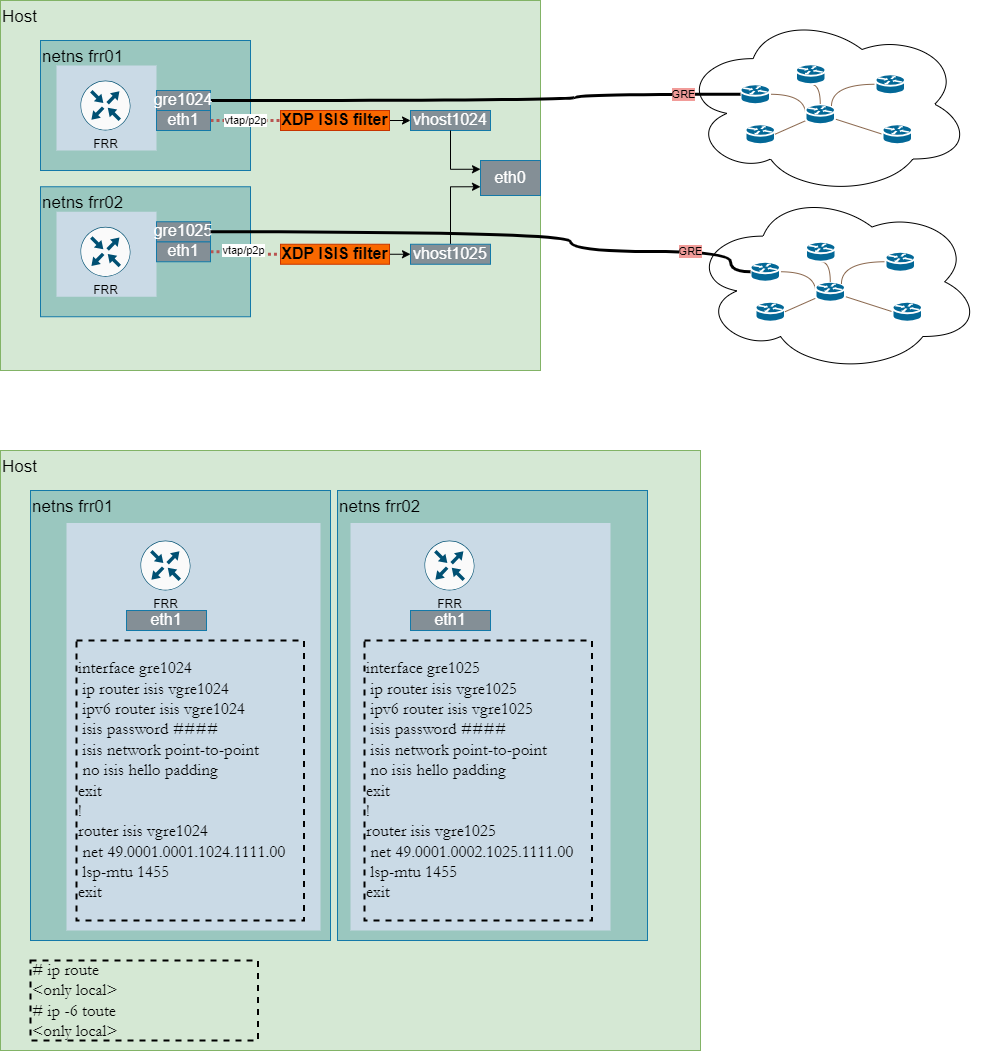

GRE FRR individual instances per area

One GRE tunnel per area

IS-IS, like OSPF, floods per area/level. In GRE mode you need at least one GRE tunnel into each area you want to monitor — this is a property of link-state flooding, not a tool limitation. BGP-LS avoids this by carrying the whole domain over a single session.

Compatibility

IS-IS network changes appear on the graph with topolograph v2.38 or later.

TLV and metric support

IS-IS Watcher parses both old-style (narrow) and new-style (wide) metrics and supports IPv6 reachability. The TLVs it understands — and the per-vendor support matrix — are summarized on the Supported Vendors page.

Key TLVs: IS Reachability (2), Extended IS Reachability (22), IPv4 Internal/ Extended Reachability (128/135), and IPv6 Reachability (236).

Custom FRR build

Running IS-IS over GRE requires an FRR build capable of it; the IS-IS Watcher repo provides the necessary build. See the repository for details.

Quick lab (containerlab)

The repo ships a containerlab topology for trying IS-IS monitoring end to end — see the containerlab/ directory and the deployment sizes table for how to layer on Topolograph and ELK.

No device? Test mode

As with the OSPF Watcher, TEST_MODE replays demo IS-IS events from a static file so you can exercise the whole pipeline without hardware.

Event log format

IS-IS Watcher emits the same comma-separated event records as the OSPF Watcher (with the IS-IS level carried alongside) — so the ELK, Zabbix and Webhook integrations work identically. See the OSPF Watcher log format for a field-by-field breakdown.

Related: OSPF Watcher · Traffic Engineering · ELK / Kibana
